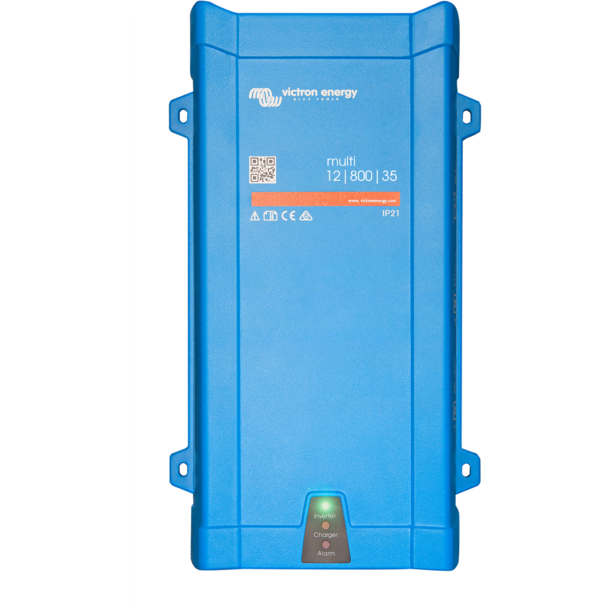

Victron MultiPlus 12/800/35-16
PMP121800000
${{amount}}
The MultiPlus 12/800/35-16 is a multifunctional inverter/charger from Victron Energy. It combines a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in one compact unit. The MultiPlus offers several advanced features, ensuring a continuous power supply and efficient power management.
Features
- Parallel Operation: Up to six MultiPlus units can operate in parallel for higher power output. Three units can be configured for three-phase output.
- PowerControl: Efficiently manages limited generator, shore side, or grid power.
- PowerAssist: Boosts the capacity of shore or generator power by adding inverter power when needed.
- Four Stage Adaptive Charger: Fine-tunes the three-stage automatic process to suit the battery's condition and adds a fourth stage for extended float charging.
- High Start-up Power: Suitable for high inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.
- Search Mode: Reduces the inverter's power consumption in no-load operation by approximately 70%.
- Programmable Relay: Set by default as an alarm relay, it de-energizes in the event of an alarm or pre-alarm.
- Remote On/Off: Allows for remote operation.
Specifications
-
Inverter:
- Input voltage range: 9.5 – 17 V
- Output voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0.1%
- Continuous output power at 25°C: 800 VA / 700 W
- Continuous output power at 40°C: 650 W
- Peak power: 1600 W
- Maximum efficiency: 93 / 94 / 95%
- Zero load power: 10 / 9 / 10 W
- Zero load power in search mode: 3/3/3W
-
Charger:
- Input voltage range: 187-265 VAC
- Charge voltage 'absorption': 14.4 V
- Charge voltage 'float': 13.8 V
- Storage mode: 13.2 V
- Charge current: 35 A
-
General:
- Operating temperature range: -40 to +65°C (fan assisted cooling)
- Humidity: max 95% (non-condensing)
- Weight: 6.4 kg
- Dimensions (HxWxD): 360 x 240 x 100 mm
Shipping
- Weight: 6.4 kg
Warranty
- This product comes with a 5-year warranty.
