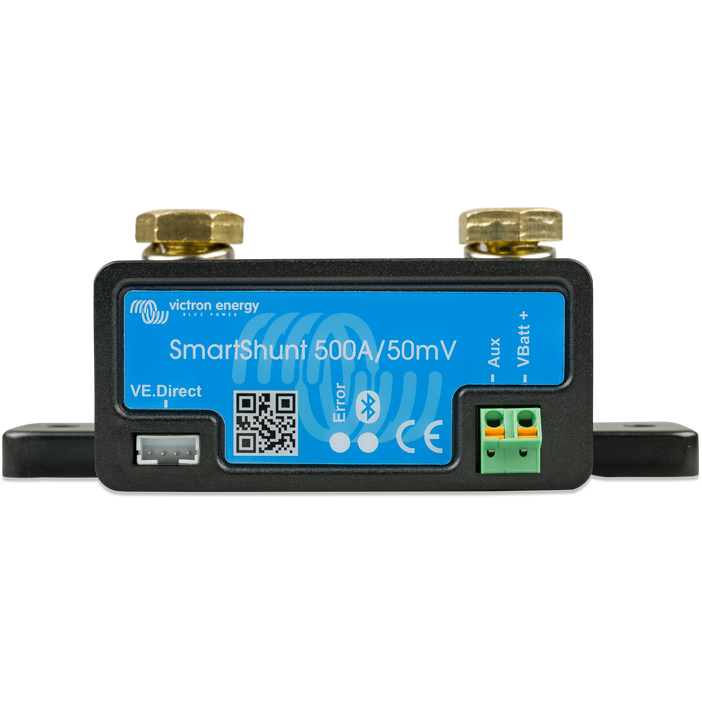

Victron SmartShunt 500A/50mV
SHU050150050
- In stock, ready to ship
- Backordered, shipping soon
${{amount}}
The SmartShunt 500A/50mV is a comprehensive battery monitor from Victron Energy. It offers a unique solution where you can use your phone as the display, thanks to its Bluetooth connectivity. This SmartShunt is water-resistant and is available in different versions, including the 500A variant. It provides a range of monitored battery parameters, such as state of charge, time to go, historical information, and more, all of which can be conveniently read out via the VictronConnect app on your phone or tablet.
Features
- All-in-one Battery Monitor: The SmartShunt acts as a complete battery monitor without the need for a separate display.
- Bluetooth Connectivity: Connects to the VictronConnect app on your phone or tablet, allowing you to read out all monitored battery parameters.
- Multiple Versions: Available in 500 A, 1000 A, or 2000 A versions.
- GX Device Compatibility: Can be connected and read by a GX device using a VE.Direct cable.
- Alternative to BMV: The SmartShunt is a suitable alternative for a BMV battery monitor, especially for systems where battery monitoring is essential, but less wiring and clutter is desired.
- Additional Features: Equipped with Bluetooth, a VE.Direct port, and an auxiliary connection for monitoring a second battery, midpoint monitoring, or connecting a temperature sensor.
Specifications
- Supply voltage range: 6.5 - 70 VDC
- Current draw: < 1 mA
- Battery capacity (Ah): 1 - 9999 Ah
- Operating temperature range: -20 +50 °C
- VE.Direct communication port: Yes
-
Resolution & Accuracy:
- Current: ± 0.01 A
- Voltage: ± 0.01 V
- Amp hours: ± 0.1 Ah
- State of charge (0 – 100 %): ± 0.1 %
- Time to go: ± 1 min
- Temperature (if optional temperature sensor connected): ± 1 °C/°F (0 – 50 °C or 30 – 120 °F)
- Accuracy of current measurement: ± 0.4 %
- Offset: Less than 20 / 40 / 80 mA
- Accuracy of voltage measurement: ± 0.3 %
- Dimensions (h x w x d): 500A: 46 x 120 x 54 mm
Shipping
- Dimensions: 46 x 120 x 54 mm
Warranty
This product comes with a 5-year warranty.
