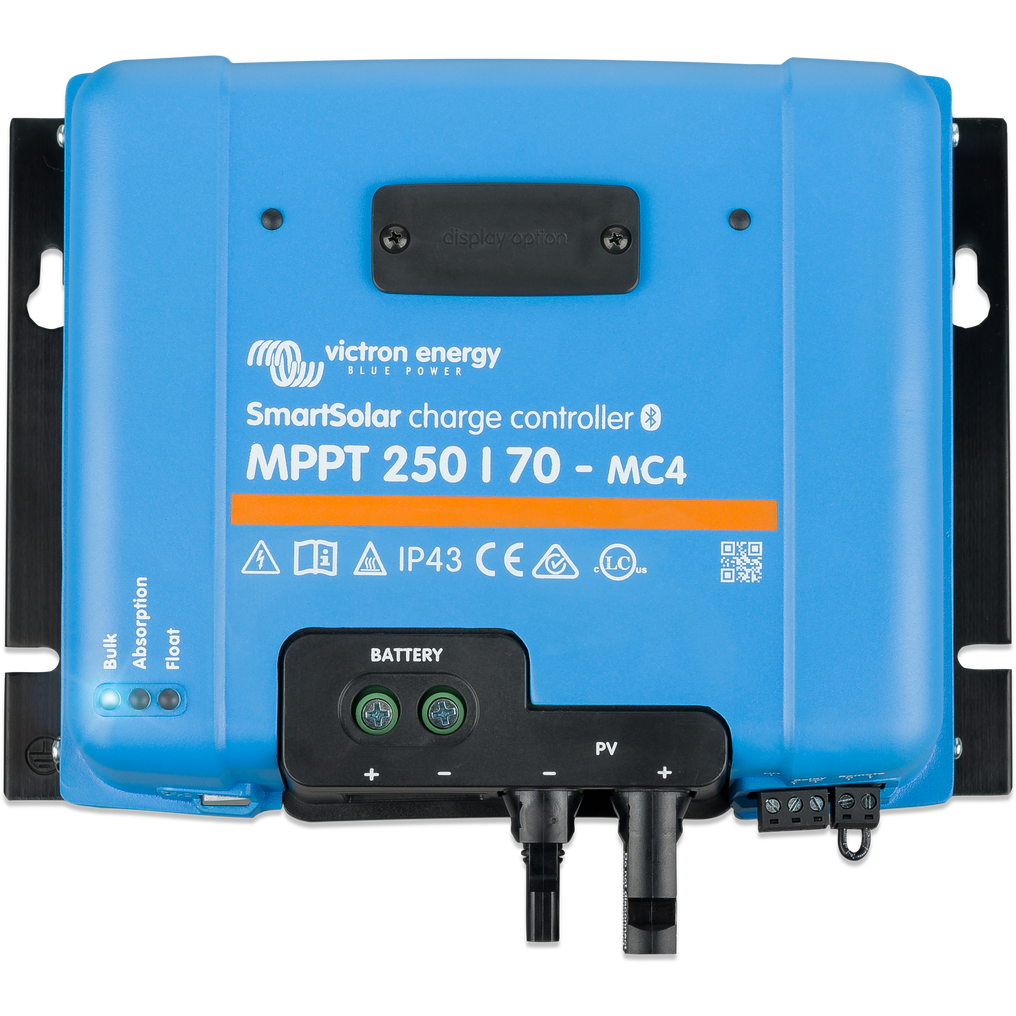

Victron MPPT SmartSolar 250/70-MC4 VE.Can

The SmartSolar MPPT 250/70-MC4 VE.Can is a highly efficient solar charge controller from Victron Energy. It employs the latest and fastest technology to maximize energy harvest from the PV by intelligently determining the optimal MPPT. The SmartSolar series ensures the best performance of your solar installation and extends battery life with its advanced features.

Features

• MPPT: Ultra-fast Maximum Power Point Tracking ensures up to 30% more energy harvest compared to PWM charge controllers and up to 10% compared to slower MPPTs.
• VE.Can: Enables daisy chaining of multiple controllers, ensuring they work in harmony.
• Remote Monitoring & Control: Through Victron's extensive GX product range.
• Flexible Charge Algorithm: Fully programmable charge algorithm with eight pre-programmed algorithms.
• Extensive Electronic Protection: Offers over-temperature protection, PV short circuit protection, PV reverse polarity protection, PV reverse current protection, and more.
• Bluetooth: Built-in Bluetooth Smart for wireless setup, monitoring, and updates.
• Internal Temperature Sensor: Compensates absorption and float charge voltage for temperature.

Specifications

• Battery Voltage: 12/24/48V Auto Select
• Rated Charge Current: 70A
• Maximum PV Power, 12V: 1000W
• Maximum PV Power, 24V: 2000W
• Maximum PV Power, 48V: 4000W
• Maximum PV Short Circuit Current: 70A
• Maximum PV Open Circuit Voltage: 250V
• Peak Efficiency: 98%
• Operating Temperature: -30 to +60°C (full rated output up to 40°C)
• Protection: IP43

Shipping

• Dimensions (HxWxD): 130 x 186 x 70 mm
• Weight: 1.25 kg

Warranty

This product comes with a 5-year warranty.
