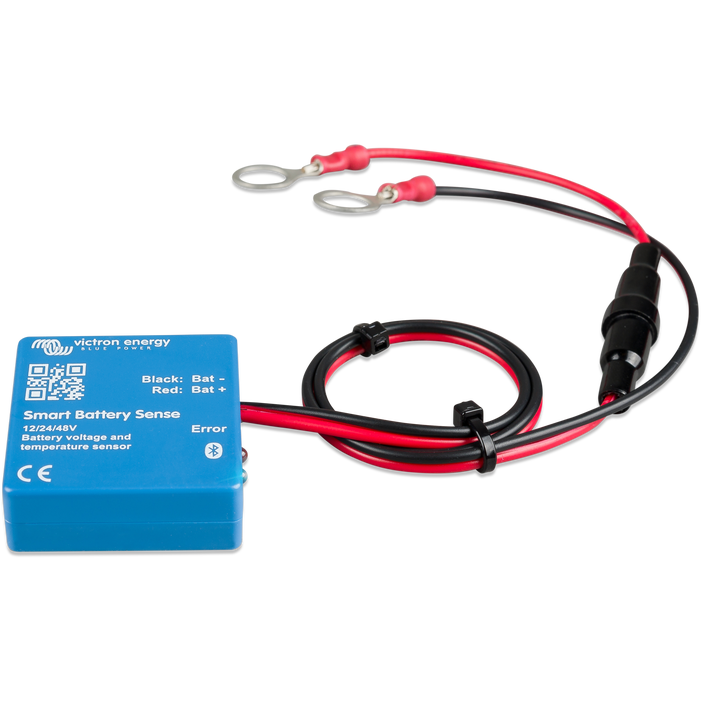

Victron Smart Battery Sense (up to 10m range)

The Victron Smart Battery Sense is a wireless battery voltage-and-temperature sensor designed specifically for Victron MPPT Solar Chargers. By utilizing these measurements, the Solar Charger optimizes its charge parameters. The connection between the Smart Battery Sense and one or more Solar Charger(s) is wireless, leveraging the VE.Smart Network, a technology based on Bluetooth Smart. The Smart Battery Sense is straightforward to install and configure, equipped with an inline fuse and pre-crimped eyelets. The self-adhesive tape on the back allows for direct mounting on the battery.

Features

• Wireless battery voltage-and-temperature sensor for Victron MPPT Solar Chargers.
• Uses VE.Smart Network for wireless connections.
• Enhances the efficiency of the Solar Charger by providing accurate battery data.
• Easy installation with pre-crimped eyelets and self-adhesive tape.
• Compatible with various Victron products; however, it's not needed or allowed in systems controlled by a Color Control GX or Venus GX.
• Not required for installations with a BMV-712 (battery monitor) with a temperature sensor accessory.

Specifications

• Dimensions: 14 x 38 x 38 mm
• Cable length: 45cm
• Eyelet hole size: 10mm (M10)
• Fuse rating: T1A 250V
• Operating temperature range: -10°C to +60°C
• Operating voltage range: 8V to 60V
• Absolute maximum voltage: 65V
• Bluetooth Frequency: 2402-2480MHz
• Bluetooth Power: -4dBm
• Power consumption (12V): Not Connected: 0.3 mA, Joining VE.Smart Network: 0.5 mA, Connected: 1.6 mA
• Power consumption (24V): Not Connected: 0.2 mA, Joining VE.Smart Network: 0.3 mA, Connected: 0.9 mA
• Power consumption (48V): Not Connected: 0.2 mA, Joining VE.Smart Network: 0.3 mA, Connected: 0.6 mA

Shipping

• Dimensions: 14 x 38 x 38 mm

Warranty

This product comes with a 5-year warranty.
